Tilt indicator Tip'N Tell, 100 pieces

Tip'N'Tell Tilt Indicator – Your Reliable Transport Monitoring Assistant

With the Tip'N'Tell Tilt Indicator, you can ensure that your shock-sensitive products are optimally monitored during transport. This smart control system reliably indicates whether a package or pallet has been improperly tilted. The Tip'N'Tell Tilt Indicator is ideal for global transportation of highly sensitive measuring instruments, fragile glass and ceramic goods, chemicals and hazardous substances, medical devices, precision mechanics, electronics, and more.

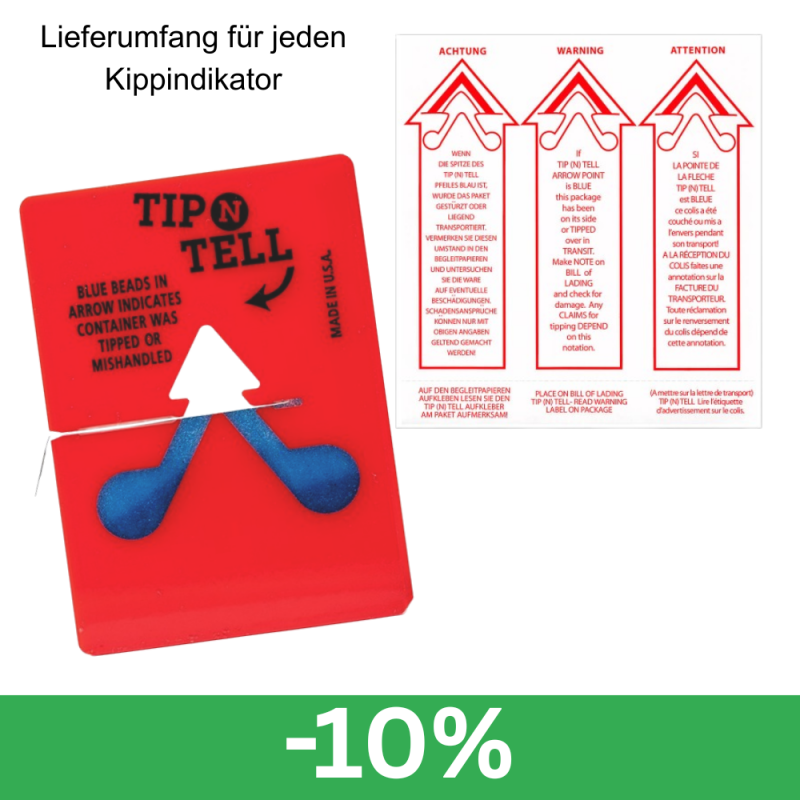

The Tip'N'Tell tilt indicator is a mechanical indicator that triggers when tilted from an angle of 60°. As soon as the package experiences a critical tilting movement, the blue sand sticks to the inner adhesive surface of the arrowhead. This means that recipients or forwarders can immediately see whether improper handling has taken place.

Kronsguard GmbH is your expert for innovative transport monitoring solutions. Our products help companies minimize transport damage, avoid insurance claims, and ensure the quality of their supply chain. Get the Tip'N'Tell Tilt Indicator and ensure maximum control over your goods. Contact us for a non-binding quote or order directly online!

Advantages of the Tip'N'Tell Tilt Indicator

✔ Clear Visual Indication: A simple yet effective transport monitoring solution.
✔ Prevents Transport Damage: By raising awareness among transport personnel, the likelihood of damage is reduced.
✔ Ideal for Sensitive Goods: Perfect for glassware, electronics, machinery, or hazardous materials.
✔ Easy Handling: Once activated, the indicator cannot be reset – tamper-proof!
✔ Self-Adhesive Backing: Easy and secure attachment to cartons, crates, or pallets.

Activation and Application:

The Tip'N'Tell Transport Indicator must first be attached vertically to the goods. Then, activation is simple – just pull out the metal strips on the side. Once activated, the blue quartz sand flows into the upper chamber when tilted beyond 60°. It adheres to the internal adhesive surface, reliably indicating whether the goods have been tilted.

The Tip'N'Tell Indicator can be attached using its self-adhesive backing or with a stapler. The included warning label should be placed directly next to the indicator to increase visibility. If your package is shaped in a way that allows it to fall in two tilt axes, you should attach two Tip'N'Tell Tilt Indicators on two sides positioned at a 90° angle to each other.

Technical Details:

• Tilt Angle: 60°
• Accuracy: +/- 5%
• Operating Temperature: -40°C to +60°C
• Mounting: Self-adhesive
• Storage Conditions: Room temperature

Dimensions:

• 100 x 70 x 3 mm

Content / Packaging Unit:

• 100 pieces Tip'N'Tell Tilt Indicator / Carton

Note: The Tip'N'Tell Tilt Indicator is not factory-equipped with serial numbers. Therefore, we explicitly point out the possibility of manipulation by the freight carrier.
