Tilt indicator TiltWatch Plus for lowest inclinations, 50 pieces

TiltWatch Plus tilt indicator – tamper-proof tilt monitoring for your shipments

The TiltWatch Plus Tilt Indicator is an indispensable and cost-effective tool for the safe transportation of sensitive and valuable products. It detects and documents unusual tilts and tilts during transportation to instantly detect transportation damage. The TiltWatch Plus Indicator is ideal for transporting expensive machinery and technical equipment, electronic components, glass, ceramics and other fragile materials, high-end furniture and artwork, and more.

The use of transportation indicators such as the TiltWatch Plus offers numerous benefits. Tilting indicators visibly and immutably document impermissible tilts, reduce transportation damage through increased care in handling, and increase the accountability of all involved. Each TiltWatch Plus tilting indicator is equipped with an individual serial number, making tampering impossible. The serial number is additionally available as a scannable barcode 128 to avoid transmission errors due to write-off.

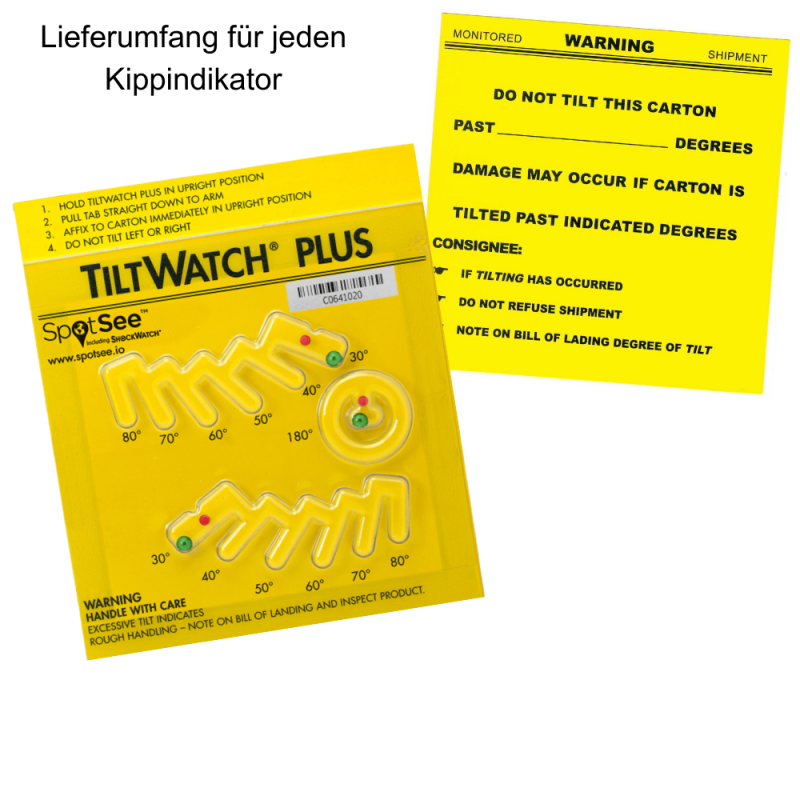

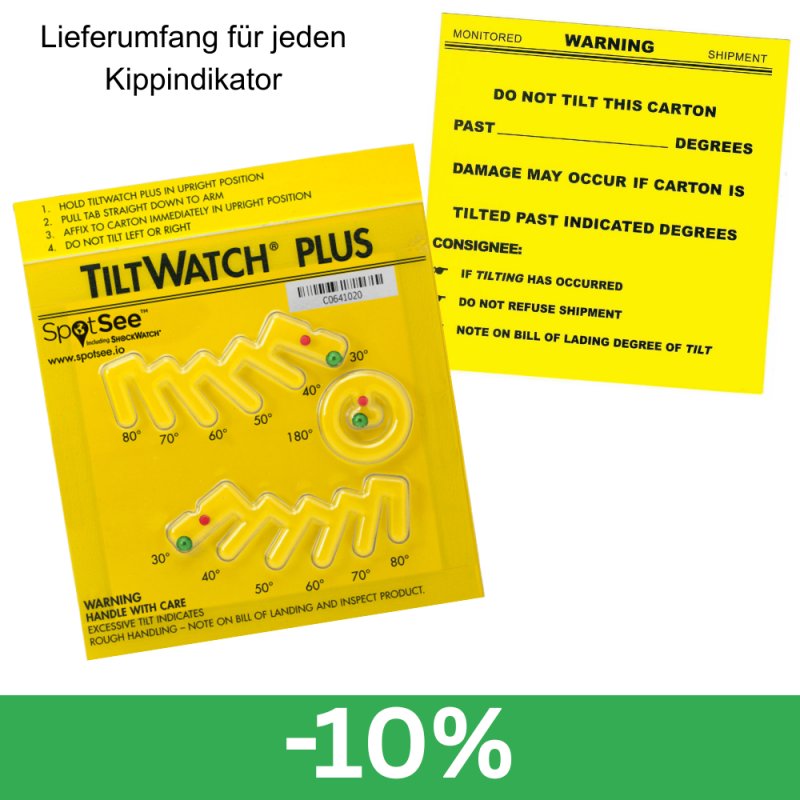

Once an inclination angle of more than 40° is reached, the integrated beads roll from compartment to compartment and stay there. This is done when tilting from left to right. The 180° display panel also indicates whether the shipment has been turned upside down.

Activation and application instructions for the TiltWatch Plus tilt indicator

The TiltWatch Plus tilting indicator has a self-adhesive backside and can be screwed or secured with staples. The indicator is activated by peeling off the protective/adhesive film. Since the measurement is one-axis, two pieces of the TiltWatch Plus indicator must be mounted offset by 90° for two-axis tilting monitoring.

For the best safety effect, we recommend using the warning stickers to mark the monitoring.

With the TiltWatch Plus tilting indicator, you can count on safety, transparency and reliable documentation throughout transport. Order now and effectively protect your valuable shipments from improper handling!

Technical details:

• Trigger at an angle of inclination from 40°
• Display window for tilt angles from left and right side: 30°, 40°, 50°, 60°, 70° and 80°
• Display window for rotation over the head: 180°
• Accuracy: /- 5%
• Working temperature: - 40°C to 60°C
• Measurement: 1-axis
• Application: Single-use
• Fastening: self-adhesive
• Shelf life of the glue: min. 12 months (before application)
• Storage conditions: room temperature

Dimensions:

• 117 x 117 x 8 mm (indicator)
• 115 x 115 mm (Warning sticker for packing)

Content / Packaging unit:

• 50 pieces of TiltWatch Plus tilt indicator
• 50 pieces of English-language warning labels
